Premium Wiring Kit for Fender® Stratocaster® Aluminum Ground Plate

Premium Wiring Kit for Fender® Stratocaster® (5-way, .1uF Orange Drop Cap)



Enhance your Fender® Stratocaster® with the LegendTone Premium Wiring Kit, crafted to deliver exceptional tone and performance. Designed specifically for Stratocasters, this kit includes everything you need to upgrade your guitar's wiring, offering a wider range of tonal options and a smooth, vintage-inspired sound.



Features:

  • Enhanced Tonal Range: Includes a 5-way switch and a .1uF Orange Drop capacitor, allowing for versatile tone configurations and superior sound quality.
  • High-Quality Components: Built with the highest quality parts to ensure durability and reliability.

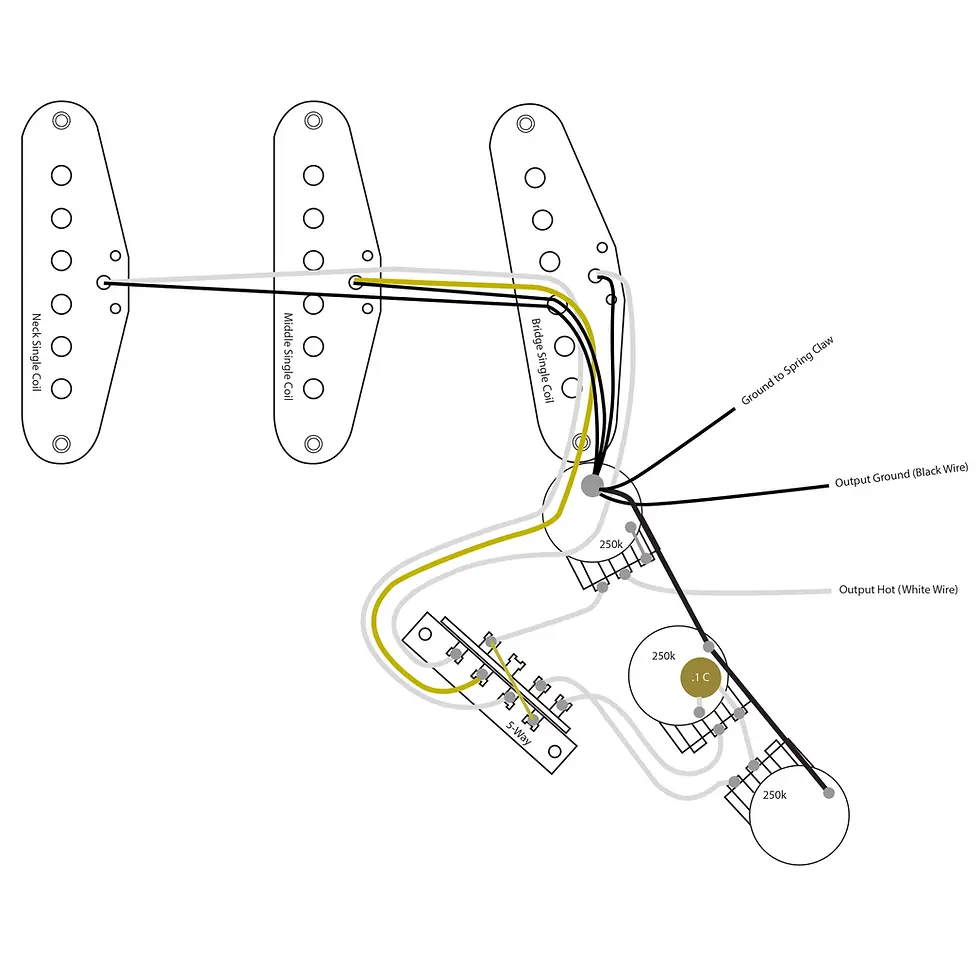

  • Easy Installation: Follow the detailed step-by-step wiring instructions for a straightforward installation, enabling you to upgrade your guitar without professional assistance.



Premium Kit Includes:

  • 1 LegendTone Ground/Shield Plate: Protects your guitar's electronics from interference and unwanted hum, available in aluminum, brass, or copper to match your style.
  • 1 Oak Grigsby 5-Way Blade Switch: Provides smooth and precise switching for a range of tonal options.
  • 3 CTS 450G 250K Potentiometers: Ideal for single coils (SSS configuration), offering smooth and consistent control.
  • 1 Orange Drop .1uF Capacitor: Enhances your guitar's tone with clarity and warmth.
  • 1 Switchcraft J11 Input/Output Jack (Mono): Ensures a secure and stable connection.
  • 12" Black Gavitt Push-Back Cloth Wire (22 AWG): High-quality wiring for optimal signal transmission.
  • 12" White Gavitt Push-Back Cloth Wire (22 AWG): Complements the black wire for a clean and organized setup.
  • 6" Yellow Gavitt Push-Back Cloth Wire (22 AWG): Additional wiring for versatile connections.
  • 12" Solid Ground Wire (22 AWG): Provides a solid ground connection, reducing noise and interference.



Controls and Configuration:

  • 5-Way Switch Positions:
    • Bridge
    • Bridge/Middle
    • Middle
    • Middle/Neck
    • Neck
  • Controls:
    • Volume
    • Tone
    • Tone
  • SSS Configuration:
    • Single Coil Bridge Pickup
    • Single Coil Middle Pickup
    • Single Coil Neck Pickup



Grounding Plate:

  • Noise Reduction: The included grounding plate effectively reduces hum and interference, ensuring a cleaner, more consistent sound.
  • Material Options: Choose from aluminum, brass, or copper to match your guitar's aesthetic and style.



Upgrade your Fender® Stratocaster® with the LegendTone Premium Wiring Kit and experience enhanced clarity, responsiveness, and tonal versatility. Perfect for both seasoned players and beginners, this kit ensures your Stratocaster® delivers the top-notch sound quality it deserves. Say goodbye to hum and hello to pristine tones with this expertly crafted wiring kit.

Premium Wiring Kit for Stratocaster (5-way, .1uF Cap)

$39.99Price
Quantity
  • 3x - CTS 450g 250K Potentiometers

    1x - Oak Grigsby Blade Switch (5-Way)

    1x - LegendTone Ground/Shield Plate (Aluminum)

    1x - Orange Drop Capacitor (0.1uF)

    1x - Switchcraft J11 Input/Output Jack

    3.5' - Gavitt Cloth Push-back Wire (12" Black, 12" White, 12" Core/Ground, 6" Yellow)
